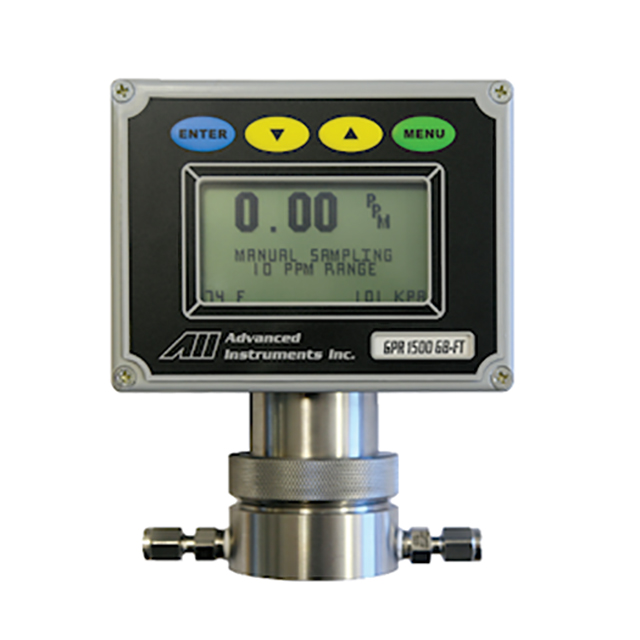

Oxygen Monitors - AII GPR-1500 GB/2500 GB

Updated:2025-03-13

Brand: PST/All
Model: GPR-1500 GB/2500 GB
Description: Designed specifically for measuring oxygen in glove boxes from air (21% O2) down to low levels (0-10 ppm O2), this oxygen transmitter range has easy installation options that ensure the best fit with
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Oxygen Monitors - AII GPR-1500 GB/2500 GB Description：

User’s Manual Datasheet

O2 Monitors for Glove Boxes and Nitrogen Generators

Features

Measurement ranges from 0-10ppm up to 0-25% O2

Accuracy of better than 2% of range

24 months sensor life span (in normal use)

4-20 mA output

18-24V loop powered

XLT sensor options for CO2?backgrounds

Designed specifically for measuring oxygen in glove boxes from air (21% O2) down to low levels (0-10 ppm O2), this oxygen transmitter range has easy installation options that ensure the best fit with the glove box operators needs. The analyzer or remote sensors can be connected directly on the glove box using a KF-40 flange. In the remote version the oxygen sensor can be placed in the glove box using our sample/calibration module.

Specifications

	GPR-1500 GB	GPR-2500 GB
Measurement range	0-10, 0-100, 0-1000 ppm, 0-1%, 0-25% (calibration only)	0-1%, 0-5%, 0-10%, 0-25%
Accuracy	< 2% of selected range at constant conditions	Accuracy
Response time	T90 < 10 seconds	Response time
Recovery time	60 seconds in air to < 10 ppm in < 1 hour on N2 purge	Not applicable
Sensitivity (LDL)	0.05 ppb	0.01%
Linearity	< 1% of scale	< 1% of scale
Sensor model	GPR-12-333 XLT-12-333 for gases containing > 0.5% CO2	GPR-11-32-4 XLT-11-24-4 for gases containing > 0.5% CO2
Sensor life at 25oC (77°F) and 1 atm	24 months in < 1000 ppm O26 months in air	GPR-11-32-4 32 months in air XLT-11-24-4 24 months in air
Calibration interval	30 days	31 days
Inlet pressure	Nominally atmospheric Flow through system: 0.34-2 barg (5-30 psig) with atmospheric vent	Nominally atmospheric Flow through system: 0.34-2 barg (5-30 psig) with atmospheric vent
Flow rate	Ambient monitoring or Flow through system 0.5-1 Nl/min (1-2 SCFH)	Ambient monitoring or Flow through system 0.5-1 Nl/min (1-2 SCFH)
Gas connections	KF 40 flange or 1/8” compression tube fittings (with flow through housing)	KF 40 flange or 1/8” compression tube fittings (with flow through housing)
Wetted parts	GPR-1500 GB Stainless steel GPR-2500 GB Delrin	GPR-1500 GB Stainless steel GPR-2500 GB Delrin
Display	Graphical LCD 7 x 3.5cm (2.75 x 1.375"); resolution 0.001	Graphical LCD 7 x 3.5cm (2.75 x 1.375"); resolution 0.002
Enclosure	Painted aluminum, 7.6 x 10.1 x 5.1cm (3 x4 x2")	Painted aluminum, 7.6 x 10.1 x 5.1cm (3 x4 x2")
Weight	900g (2lbs)	900g (2lbs)
Compensation	Temperature	Temperature
Signal output	4-20mA (loop current)	4-20mA (loop current)
Alarms	None	None
Operating temperature	GPR sensor: 5°C to 45°C (41°F to 113°F) XLT sensor: -10°C to 45°C (14°F to 113°F)	GPR sensor: 5°C to 45°C (41°F to 113°F) XLT sensor: -10°C to 45°C (14°F to 113°F)
Power	18-24 V DC two wire loop	18-24 V DC two wire loop
Area classification	General purpose	General purpose
