GPR-1900 User’s Manual GPR-2900 User’s Manual Datasheet
Flexible, Easy Maintenance Oxygen Measurement
Features
Measurement ranges from 0-10ppm up to 0-100% O2
Barometric pressure and temperature compensation
Accuracy of better than 2% of range
Two user configurable alarms
Range ID output
12-28 V DC or mains powered options
XLT sensor options for CO2?backgrounds

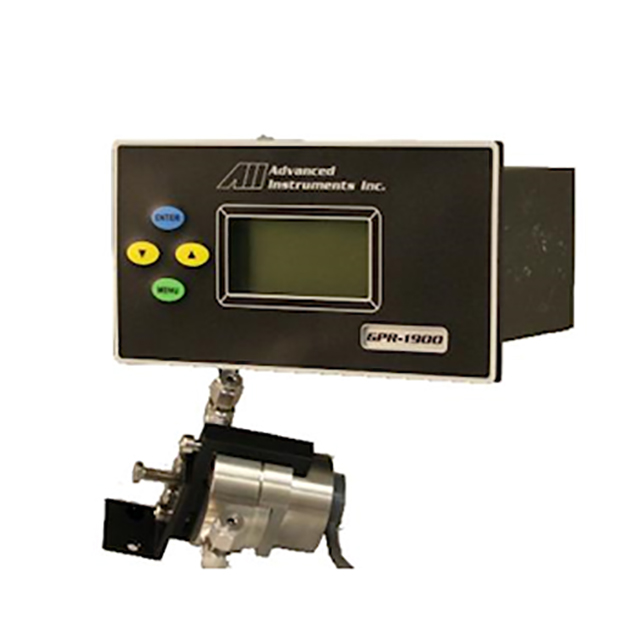

A panel mounted oxygen analyser with a remote sensor allows flexibility of installation. The GPR-1900 gas analyzer is suitable for trace oxygen measurements as low as 0-10 ppm; the GPR-2900 measures O2?up to 100%. The remote sensor block allows a very easy oxygen sensor replacement for simple and fast maintenance and low cost of ownership. All versions can be locked manually to a single range or auto-range. The user is always aware of the oxygen measurement range used via the range ID output.
Specifications
| GPR-1900 | GPR-2900 | |
| Measurement range | 0-10, 0-100, 0-1000 ppm, 0-1%, 0-25% |
0-1%, 0-5%, 0-10%, 0-25%; optional 0-1%, 0-5%, 0-10%, 0-100% |
| Accuracy | < 2% of selected range at constant conditions | < 2% of selected range at constant conditions |
| Response time | T90 < 10 seconds | T90 < 10 seconds |
| Recovery time | 60 seconds in air to < 10 ppm in < 1 hr on N2 purge | N/A |
| Sensitivity (LDL) | 0.05 ppm | 0.01% |
| Linearity | < 0.5% of scale | < 0.5% of scale |
| Sensor model |
GPR-11-60-4 XLT-11-24-4 for gases containing > 0.5% CO2 |
GPR-11-60-4 XLT-11-24-4 for gases containing > 0.5% CO2 |
| Sensor life 25oC (77°F) and 1 atm |
24 months in < 1000 ppm O2 6 months in air |
GPR-11-60-4 60 months in air XLT-11-24-4 24 months in air |
| Calibration interval | 30 days | 30 days |
| Inlet pressure | 0.34 2 barg (5-30 psig) with atmospheric vent | 0.34 2 barg (5-30 psig) with atmospheric vent |
| Flow rate | 0.5 1.0 l/m (1-2 SCFH) | 0.5 1.0 l/m (1-2 SCFH) |
| Gas connections | 1/8" compression tube fittings | 1/8" compression tube fittings |
| Wetted parts | Stainless steel | Delrin; stainless steel optional |
| Display | Graphical LCD 12.7 x 7cm (5 x 2.75”); resolution 0.001 ppm GPR-1900 MS2, 0.01 ppm GPR-1999, 0.001% GPR-2900 | Graphical LCD 12.7 x 7cm (5 x 2.75”); resolution 0.001 ppm GPR-1900 MS2, 0.01 ppm GPR-1999, 0.001% GPR-2900 |
| Enclosure | Painted aluminum 6" x 4" x 4" panel mount | Painted aluminum 6" x 4" x 4" panel mount |
| Compensation | Barometric pressure and temperature | Barometric pressure and temperature |
| Signal output | 4-20 mA or 1-5V | 4-20 mA or 1-5V |
| Range ID |
4-20 mA non-isolated or 1-5V Option: reassign relay contacts (eliminates standard alarms). |
4-20 mA non-isolated or 1-5V Option: reassign relay contacts (eliminates standard alarms). |
| Alarms | Two user configurable alarms: magnetic coil relays rated 3A at 100 V AC | Two user configurable alarms: magnetic coil relays rated 3A at 100 V AC |
| Operating temperature |
GPR sensors: 5°C to 45°C (41°F to 113°F) XLT sensors: -10°C to 45°C (14°F to 113°F) |
GPR sensors: 5°C to 45°C (41°F to 113°F) XLT sensors: -10°C to 45°C (14°F to 113°F) |
| Power | 100-240 V AC or 12-28 V DC | 100-240 V AC or 12-28 V DC |
