Datasheet

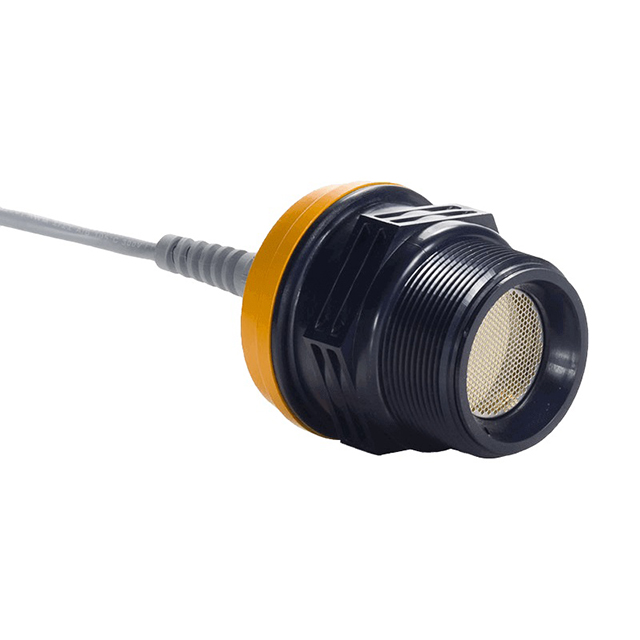

The IRU-2420 provides a non-contact method of detecting level, presence/absence detection, volume, proximity and distance. With built in technology to compensate for unpredictable variables such as humidity, temperature and agitators, the IRU is the right sensor for your application.
Hazardous Location Certified
IRU-2420 ultrasonic sensors are suitable for hazardous locations classified under CSA Class 1, Div. 2.
Flexible Programming
This series of ultrasonics was designed with flexibility in mind. It features our AutoSense software for quick and easy programming in a variety of application settings.
A Good Fit
With a 25 ft. range, a 2 in. NPT fitting, and a 4-20mA output, the IRU-2420 sensors work well for many tank level applications.
Technical Specifications
| PERFORMANCE | |
| Operating range | 1 - 25 ft. (0.3 - 7.6 m) |
| Beam pattern | 9o off axis |
| Frequency | 69 kHz |
| Accuracy | ±0.25% of detected range |
| Resolution | 0.1 in. (2.5 mm) |
| Response time | Programmable (20 ms minimum) |
| CONNECTIVITY | |
| Output |
4-20 mA 600 ohms @ 24 VDC 150 ohms @ 12 VDC 4-20 mA with (2) NPN outputs |
| ENVIRONMENTAL | |
| Ratings | IP65 |
| Operating temp | -40o to 140oF (-40o to 60oC) |
| ELECTRICAL | |
| Total current draw | 75 mA @ 24 VDC |
| Supply voltage | 12-28 VDC |
| Wiring connection | 4 or 5 conductor shielded cable |
| PHYSICAL | |
| Materials |
PVDF (Kynar®) transducer housing PC/PET upper housing |
| Transducer type | Ceramic, PVDF faced |
