Datasheet

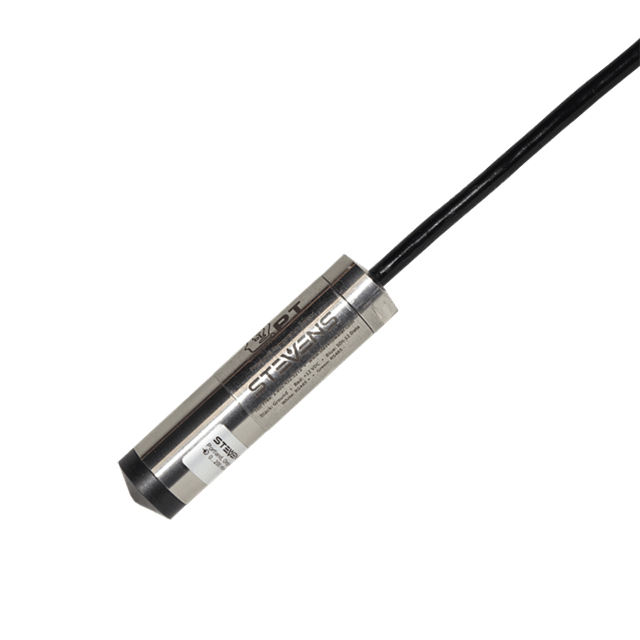

Stevens’ Smart PT is a ceramic membrane pressure and temperature sensor that delivers accurate results for a wide range of fluid level measurement applications. In addition to simple instantaneous measurements, this smart sensor features the ability to capture peak crest levels, and to automatically sample and report basic statistics on a configurable time interval.
A corrosion-resistant stainless steel housing and potted electronics make Smart PT extremely durable and long lasting for submersible water applications.
Smart PT is available with a vented or absolute pressure sensing module. Both versions come equipped with user specified length of cable. The vent tube provides an atmospheric reference which compensates for variations in barometric pressure.
In addition to programmable corrections for local variations in Earth’s gravitational field, Smart PT also compensates automatically for the water temperature-density dependency.
Every Smart PT provides digital SDI-12, RS-485 and Modbus RTU over RS-485. Compatible with existing power and data logging instruments, the sensor can easily be deployed for data collection at remote monitoring sites.
Technical Specifications
| Supply voltage | 6 - 28 VDC (12 VDC typical) |
| Current consumption |
Average, SDI-12, one measurement per minute: 0.9 mA Average, RS-485, one measurement per minute: 1.5 mA Peak current, during response to host: 30 mA |
| Output |
SDI-12 (Version 1.4) and RS-485 Selectable output: Pressure in bar, kPa, psi, or water depth in m, cm, ft. Temperature in °C or °F |
| Operating temperature | -20 °C to 80 °C (-4 °F to 176 °F) |
| Storage temperature | -40 °C to 80 °C (-40 °F to 176 °F) |
| Pressure accuracy | ± 0.1% of full scale, temperature corrected |
| Temperature accuracy | ± 0.25 °C (0.45 °F) |
| Wiring |
Red: 6 - 28 VDC Black: GROUND Blue: SDI-12, White: RS-485 A/+ Green: RS-485 B/- |
| Cable | High durability polyurethane (26 AWG) |
| Pipe threading | M14-1 |
| Dimensions | 86.4 mm x 22.1 mm (3.4 in x 0.9 in) |
| Housing | 316L Stainless Steel, Fully Potted, IP68 |
| Weight |
Probe: 120 g (4.23 oz.) Cable: 40 g per m (0.43 oz. per ft) |
