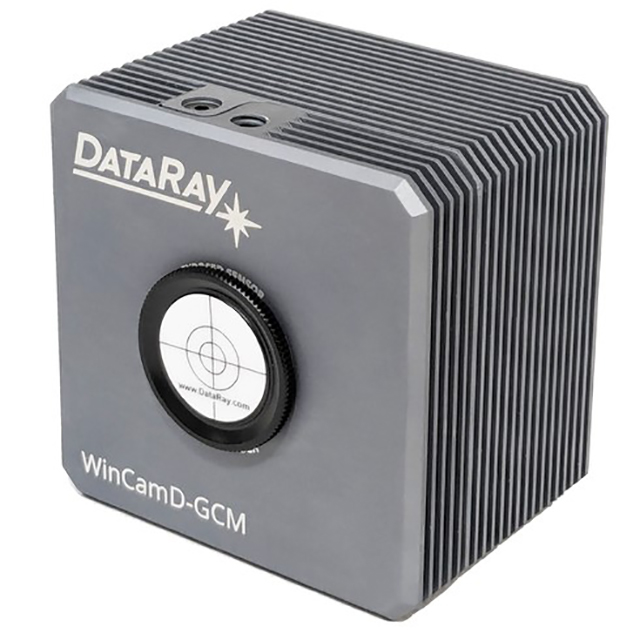

WinCamD-GCM Description：

Product Manual Datasheet Drawing

Using the same sensor as the WinCamD-LCM (11.3 x 11.3 mm active area, 4.2 Mpixels, 5.5 x 5.5 μm pixels, global shutter), the WinCamD-GCM utilizes a GigE Vision® connection for long-range applications (cable lengths up to ~100m) and can be easily scaled and integrated into existing networks.

Key Features

GigE Vision connectivity

355 to 1150 nm, standard CMOS detector

4.2Mpixel, 2048 x 2048 pixels, 11.3 x 11.3 mm active area

5.5 μm pixels

MagND? stackable magnetic ND filters or C-mount filters

2,500:1 Signal to RMS Noise

Global shutter with TTL trigger

Electronic auto-shutter, 40 μs to 2 sec (47 dB)

12-bit ADC

Isolated pulse triggering

Parallel capture on multiple cameras

Field-replaceable image sensors

Window-free sensors standard for no fringing

ISO 11146 M2 option — beam propagation analysis, divergence, focus

Available for large beam (LBPS) and line laser (LLPS) profiling systems

Example Applications

Long range applications which require long cabling

CW & pulsed laser profiling

Field servicing of lasers and laser-based systems

Optical assembly & instrument alignment

Beam wander & logging

M2 measurements

Specification

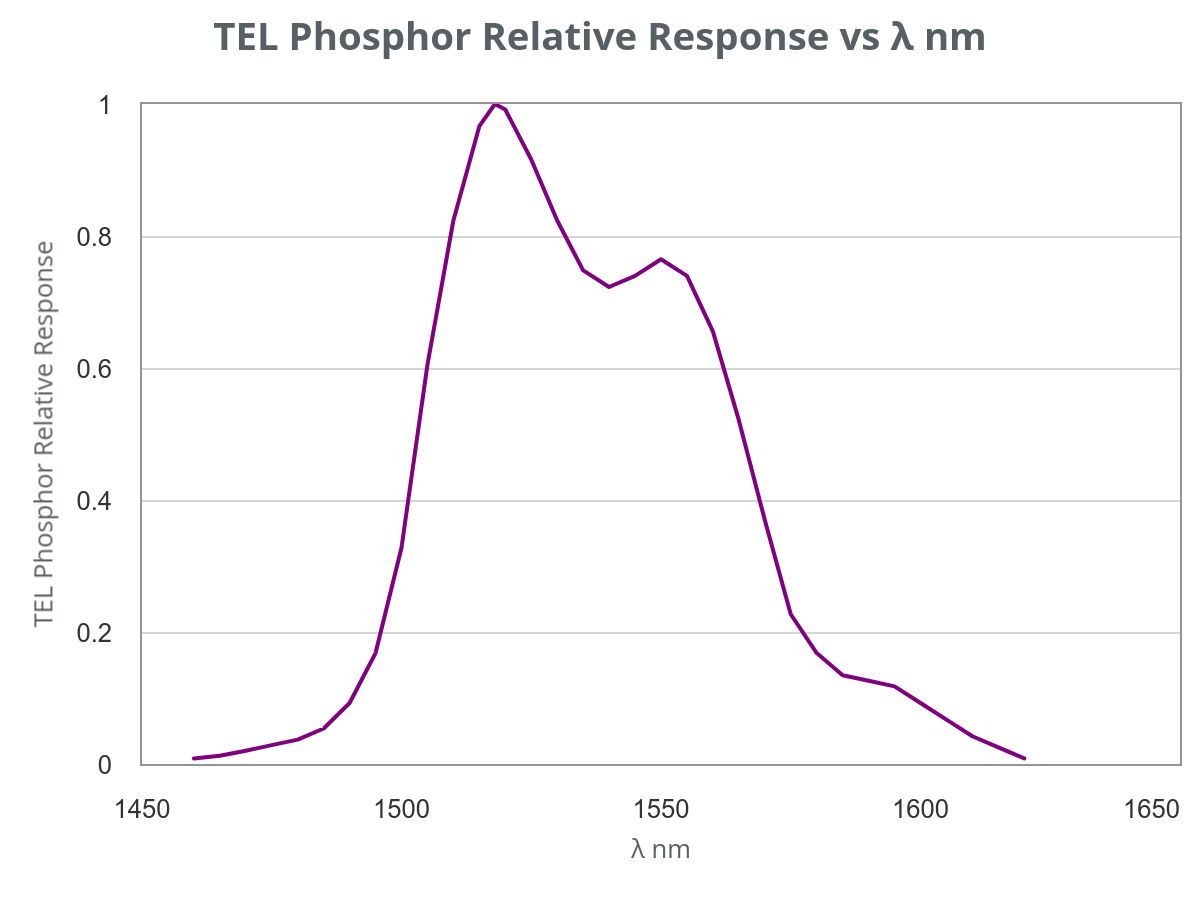

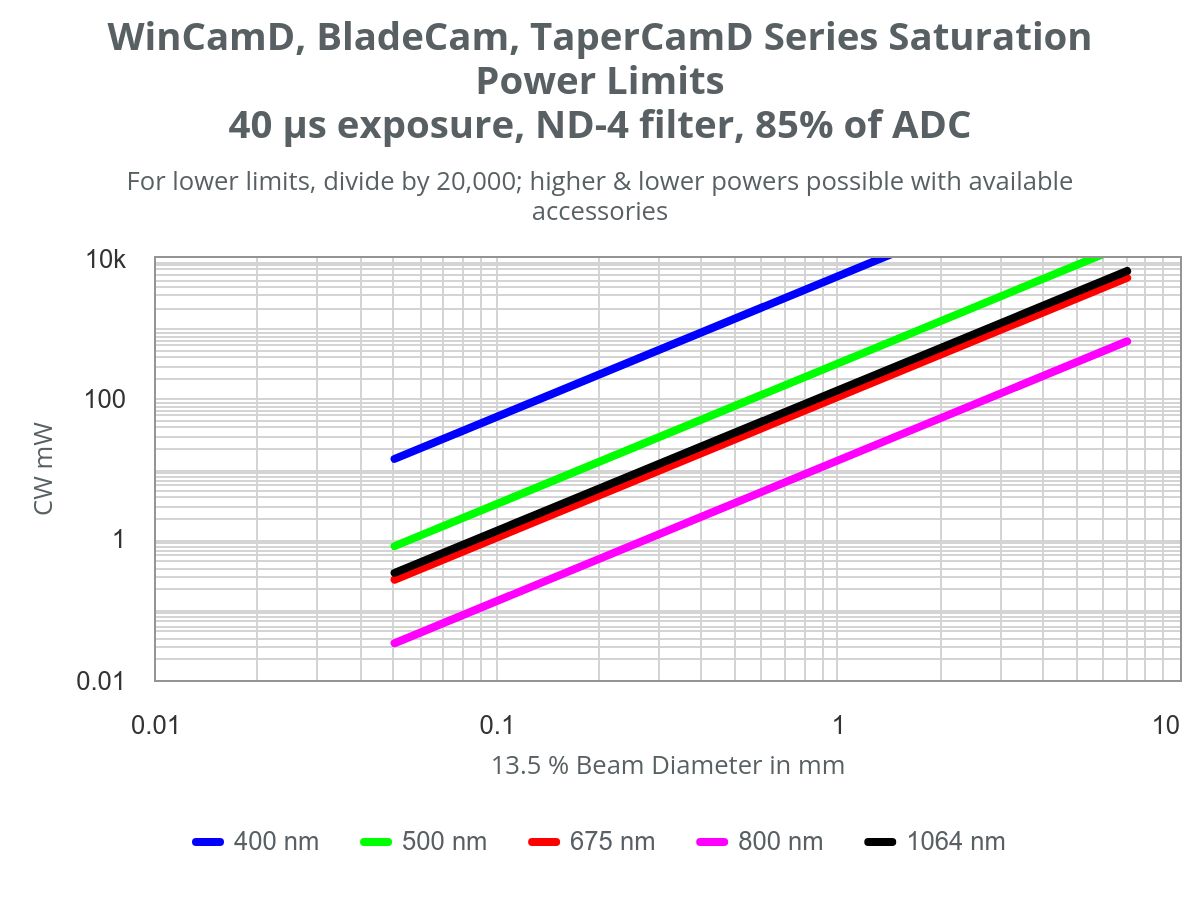

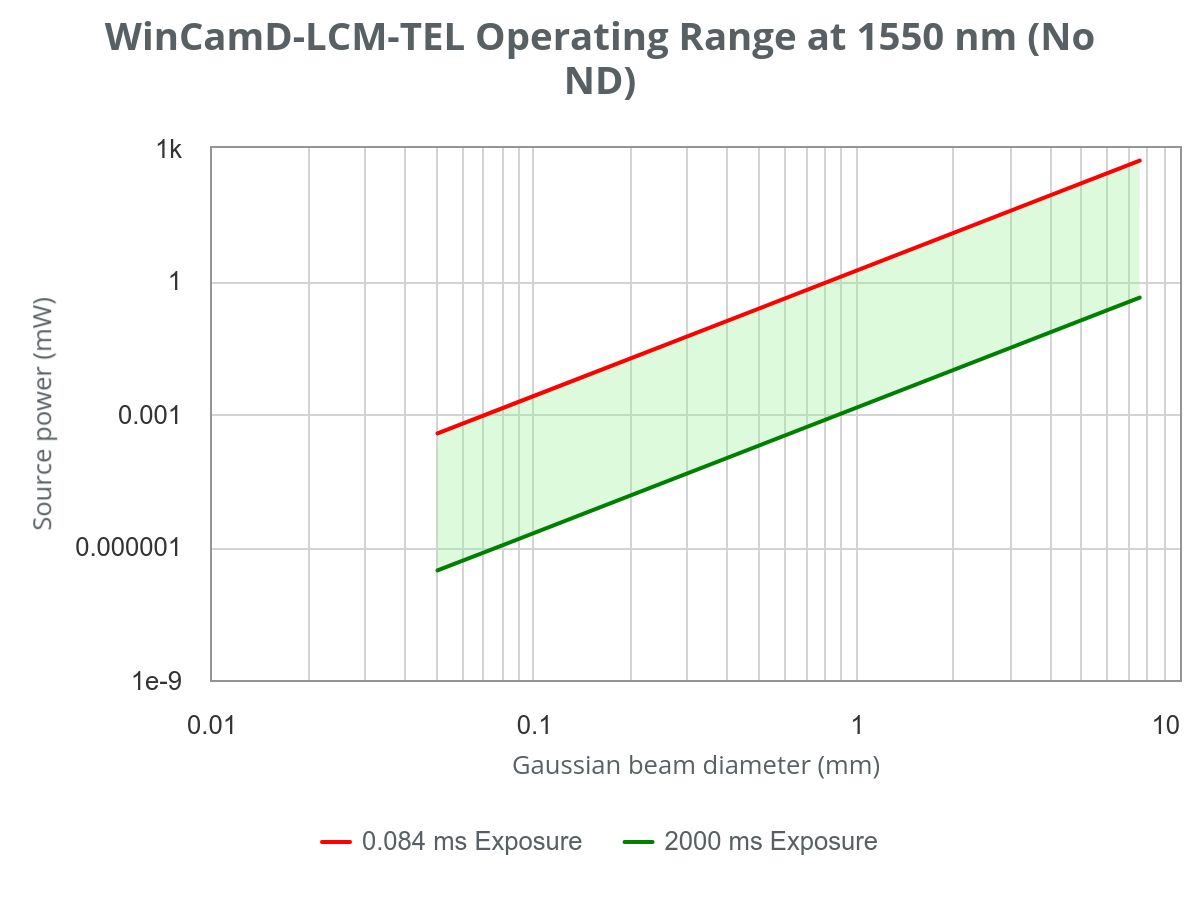

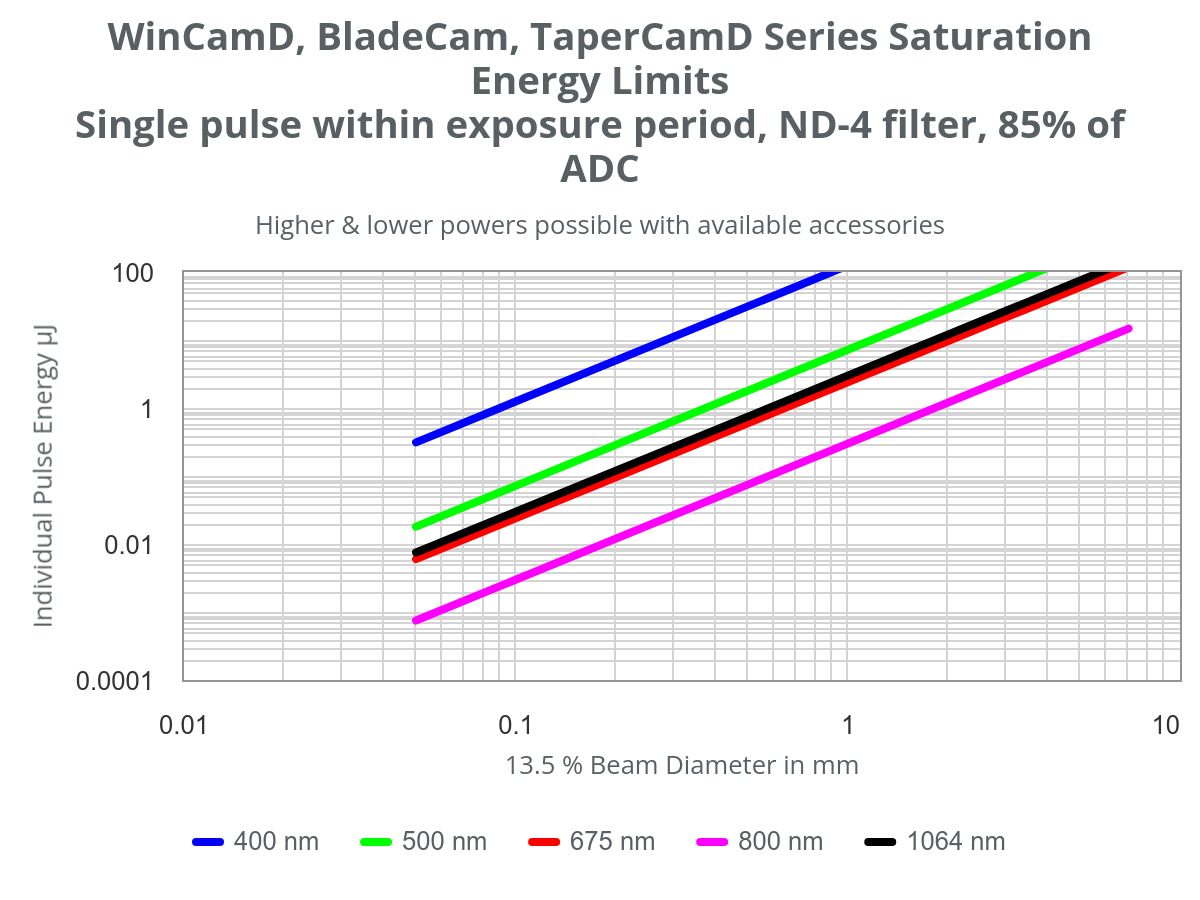

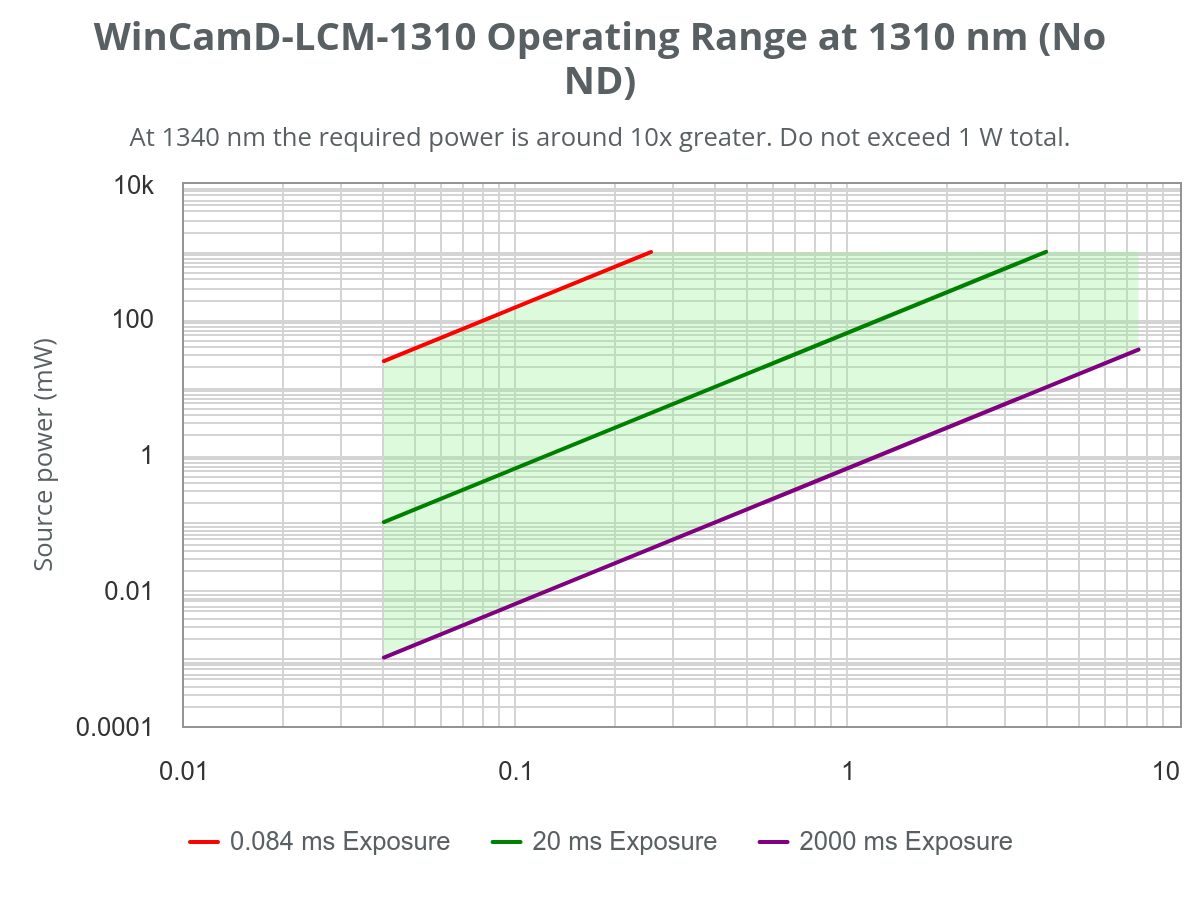

Chart
