WinCamD-QD Description：

Product Manual Datasheet Drawing

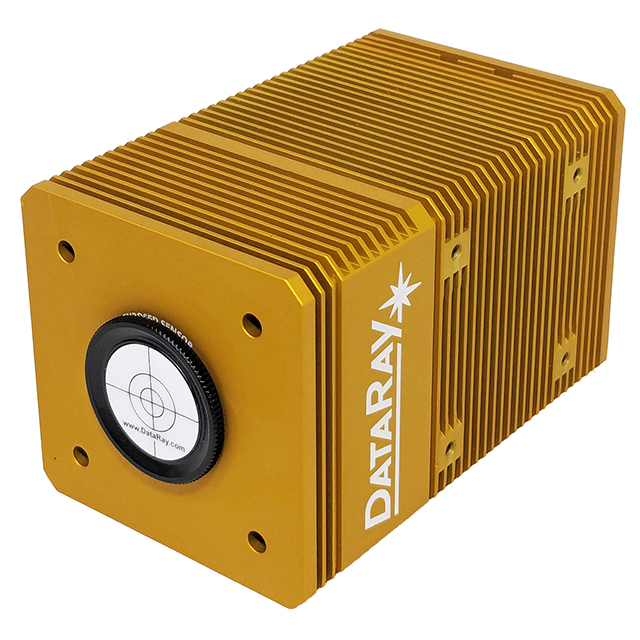

The WinCamD-QD series uses colloidal quantum dot sensors to provide high quality beam profiling for visible, SWIR, and eSWIR sources. With 15 μm pixels and a wavelength range as wide as 350 to 2000 nm the WinCamD-QD series offers unparalleled beam profiling capabilities. With a signal-to-noise ratio that exceeds 2100:1, the WinCamD-QD series is capable of ISO 11146 compliant beam measurements. The state-of-the-art colloidal quantum dot sensor features very high sensitivity with a global shutter for pulsed beam profiling.

Key Features

Quantum dot sensor, optimized for 1550 or 2000 nm

Covers wavelengths 400 to 1700 nm or 350 to 2000 nm

Multiple active area options, to 1920 x 1080

15 μm pixels

14-bit ADC

Global shutter; supports pulsed and CW beams

>2100:1 dynamic range

In-firmware NUC

Parallel capture on multiple cameras

M2 measurements

GigE or USB 3.0 with 3 m screw locking cable

GigE Vision®/USB3 Vision® support

Example Applications

1550 nm / 2000 nm laser profiling

Field servicing of 1550 nm / 2000 nm lasers and laser-based systems

Optical assembly & instrument alignment

Beam wander & logging

M2 measurement with available M2DU stage

Specification

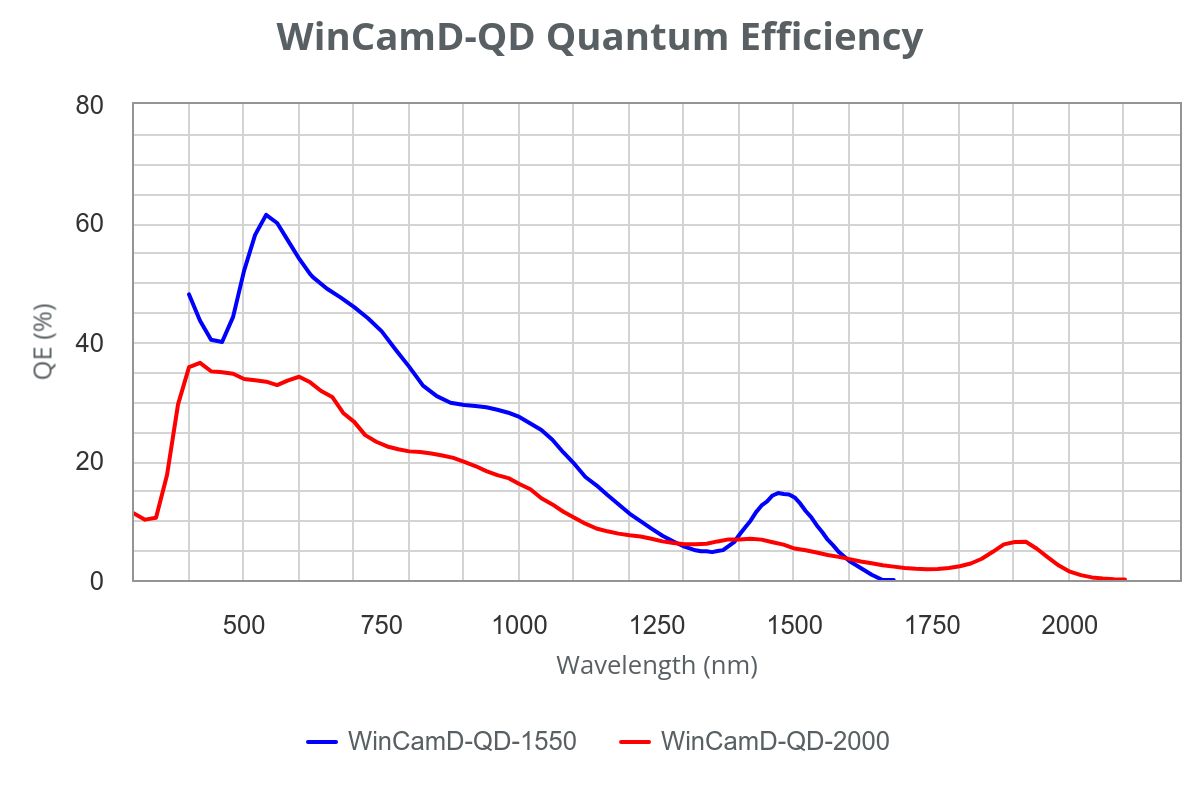

Chart
