WinCamD-IR-BB Description：

Product Manual Datasheet Drawing

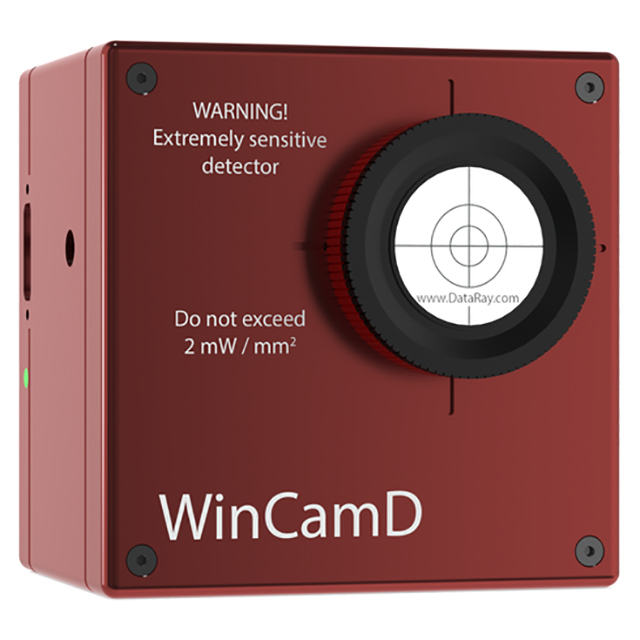

The WinCamD-IR-BB is an ideal imaging solution for lasers in the MWIR and FIR range. With 17 μm pixels, a wavelength range of 2 to 16 μm, and an integrated shutter, the WinCamD-IR-BB offers unparalleled beam profiling capabilities. With a signal-to-noise ratio that exceeds 1000:1, the WinCamD-IR-BB is capable of ISO 11146-compliant beam measurements. The microbolometer-based camera features very high sensitivity, and the integrated shutter allows for fully automated non-uniformity correction.

Key Features

Broadband 2 to 16 μm VOx microbolometer

640 x 480, 17 μm pixels

10.8 x 8.2 mm active area

Low irradiance capability: ~75 μW/cm2 at 5 x peak-to-peak noise

30 fps (7.5 fps for export)

Port-powered USB 3.0; no power brick required

No chopper/TEC

Integrated shutter allowing for

HyperCal? – Dynamic Noise and Baseline Correction software

Automated non-uniformity correction (NUC)

≥1000:1 Signal to RMS Noise

14-bit ADC

14 ms thermal time constant

Measure pulsed lasers with PRR ≥1 kHz

Parallel capture on multiple cameras

ISO 11146 M2 option - beam propagation analysis, divergence, focus finding

Example Applications

MWIR/FIR/CO? laser profiling

Field servicing of MWIR/FIR/CO? lasers and laser-based systems

Optical assembly & instrument alignment

Beam wander & logging

M2 measurement with available M2DU stage

Specification

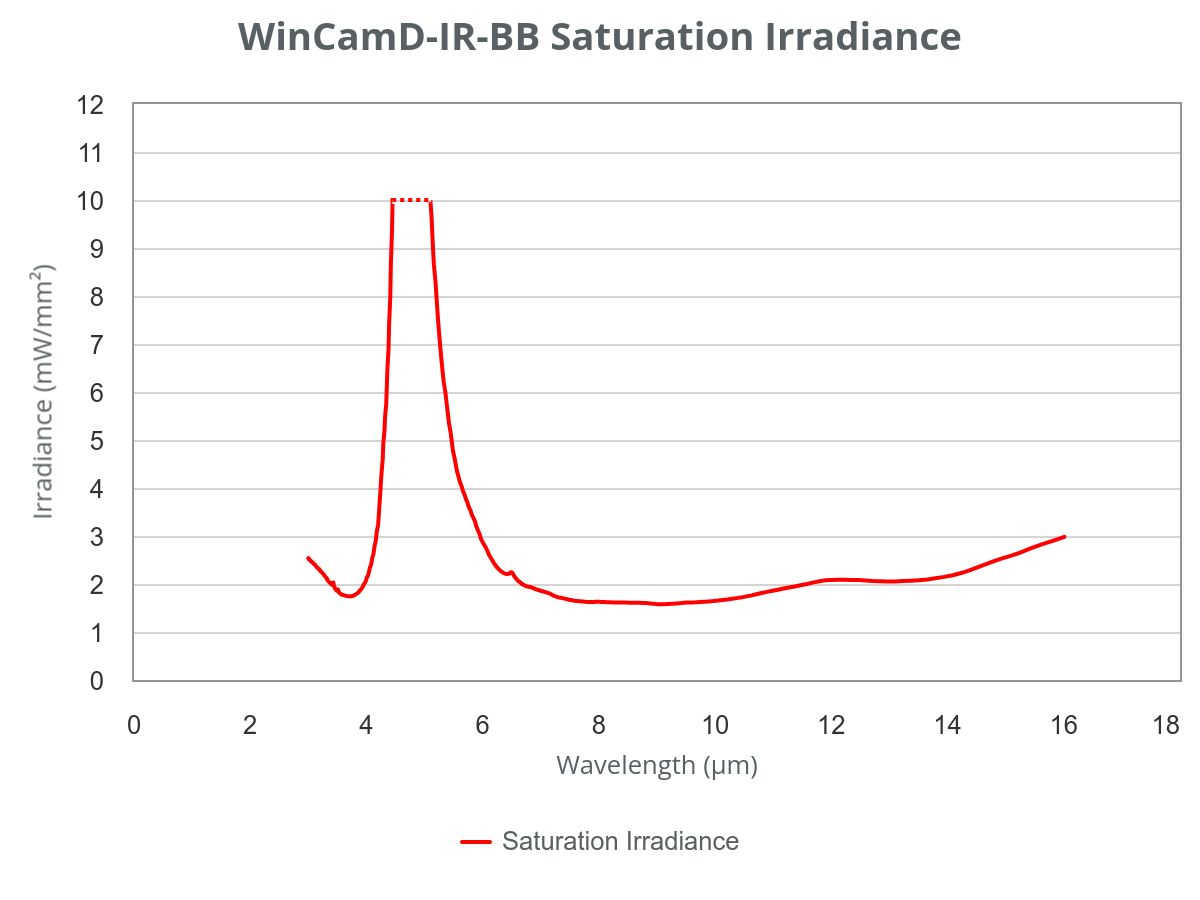

Chart
